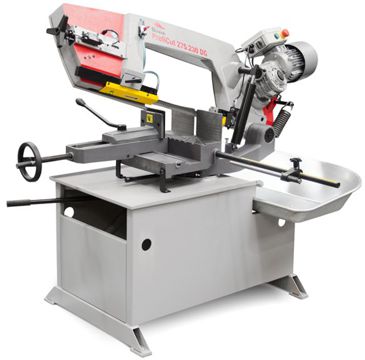

Bomar Proficut 275.230DG Miter Band Saw

The model Proficut 275.230 DG manual band saw features a vibration damping cast iron heavy-duty saw frame with with a powerful 2-speed industrial saw drive. The ability to miter cut in both directions makes this the ideal workshop machine. The clamping vise can be moved left and right depending on the direction of the miter cut. The cutting force is achieved by the weight of the saw-head while the feed rate can be adjusted via the conveniently located flow-control valve on the control panel. The machine has quick-approach feature that allows the operator to move the saw head rapidly towards the work piece via a handle and trigger that bypasses the feed-control valve.

  • • Rigid Cast Iron Saw Head.
  • • 2 Speed Saw Drive.
  • • Miter Cutting from -45° to 60°.
  • • Carbide Saw Blade Guides.
  • • Safety Switches on Band-wheel Door.
  • • Blade Tension and Breakage Switch.
  • • Integrated Coolant System.
  • • Quick-Clamping Vise.
  • • Mechanical Length Stop.
  • • CSA Approved.

SPECIFICATIONS:
Cap. Round
Cap. Round 45°
Cap. Round 60°
Cap. Rect.
Cap. Rect. 45°
Cap. Rect. 60°
Voltage 3 Phase
Drive Motor
9"
7.5"
4.7"
10.8" x 7.9"
7.5" x 6.3"
4.7" x 3.4"
230/60/3
2HP
Blade Size
Blade speeds
Blade guides
Blade tension
Band Wheels
1" x 10'3"
2 speed 130/260 fpm
Carbide
preset
Ductile Iron
Table Height
Width
Length
Height
Weight
29.9"
27"
56"
70"
680 lbs

PRICE: $5,770.00


THIS CANADIAN DOLLAR PRICE INCLUDES:

  • No Charge for C.S.A. Approval (Required by Law in Canada).
  • FOB Burlington, ON
  • Everything is taken care of for you!
