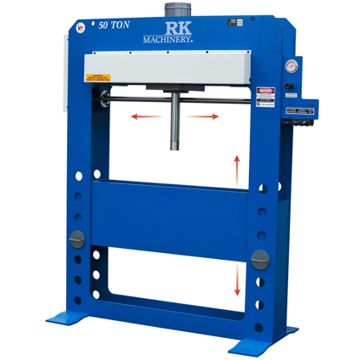

RK 50 Ton Hydraulic H-Frame Press
With Powered Moveable Head

  • STANDARD FEATURES:
  • • Electric/Hydraulic Operation provides smooth, consistent pressing action.
  • • Open Sides to facilitate work on long lengths.
  • • Flat Ram Nose can be easily changed to allow the user to adapt the press for a specific job.
  • • Low Speed Pump - quiet dependable operation.
  • • Self-locking table design eliminates lateral movement.
  • • Powered movable workhead for off-center work allows operator to position the cylinder from left to right with the touch of a lever.
  • • Hydraulic power-lift for vertical displacement of table.
  • • Cylinder Activation is fingertip controlled, the more the hand lever is engaged, the more the ram movement is accelerated.
  • • This allows the operator to control the proper speed for the task.
  • • Low Pressure hydraulic system maintains lower oil temperatures, resulting in higher efficiency and safer operation.
  • • All Hydraulic and Mechanical parts are Standard in the industry and available through out North America.

SPECIFICATIONS:
Rating
Motor
Electric Requirements
Cylinder Bore
Stroke
Rod
Ram Speed "Press"
Ram Speed "Return"
Reservoir
Dimensions
Weight
50 Tons
5 HP
1 Phase
7"
16"
3"
18 IPM
22 IPM
10 Gallons
L 50" x W 82" x H 106"
2,400 Lbs

PRICE: $14,195.00
