National Bench and Floor Model
Box and Pan Brakes

  • National heavy duty power shears are equipped with a fully integrated hydraulic unit.
  • National has four popular floor model box and pan brakes designed to be easy and simple to operate.
  • • Standard with 2”, 3” and 4” finger widths.
  • • Stop rods for repeat bends.
  • • Two large counterweights.
  • • Precision bearings on the apron.
  • • All steel body construction with extra heavy tie rods for minimum deflection.

SPECIFICATIONS: BENCH MODEL
MODEL:
Capacity Mild Steel
Capacity Stainless Steel
Finger Width
Box Depth
Bending Length
Floor Space
Weight
U4816
16 ga.
20 ga.
2",3",4"
4"
48-1/4"
66-1/2" x 38" x 54"
500 lbs

SPECIFICATIONS: FLOOR MODEL FLOOR MODEL
MODEL:
Capacity Mild Steel
Capacity Stainless Steel
Finger Width
Box Depth
Bending Length
Floor Space
Weight

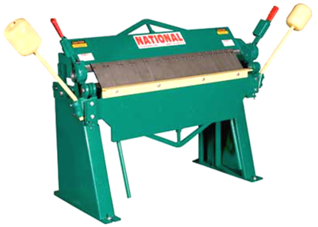

U4812
12 ga.
16 ga.
2",3",4"
4"
49"
95" x 27" x 55"
1,150 lbs
U7216
16 ga.
20 ga.
2",3",4"
4"
73"
119" x 27" x 55"
1,850 lbs

MODEL
Capacity Mild Steel
Capacity Stainless Steel
Finger Width
Box Depth
Bending Length
Floor Space
Weight
U7212
12 ga.
16 ga.
2",3",4"
4"
73"
129" x 27" x 57"
2,100 lbs
U9616
16 ga.
20 ga.
2",3",4"
4"
97"
143" x 27" x 55"
2,200 lbs

SPECIFICATIONS: HEAVY DUTY MODELS HEAVY DUTY MODELS
MODEL
Capacity Mild Steel
Capacity Stainless Steel
Finger Width
Box Depth
Bending Length
Floor Space
Weight
U6-4812
12 ga.
16 ga.
3",4",5"
6"
49"
95" x 27" x 55"
1,900 lbs
U6-7212
12 ga.
16 ga.
3",4",5",6"
6"
73"
126" x 29" x 59"
2,530 lbs

MODEL
Capacity Mild Steel
Capacity Stainless Steel
Finger Width
Box Depth
Bending Length
Floor Space
Weight
U6-9614
14 ga.
18 ga.
3",4",5",6"
6"
97"
153" x 29" x 59"
2800 lbs
U6-12016
16 ga.
20 ga.
3",4",5",6"
6"
121"
177" x 29" x 59"
3200 lbs

PLEASE CALL FOR PRICING
OUR CANADIAN DOLLAR PRICES INCLUDE:

  • The US$/CA$ Exchange Rate.
  • All Customs and Brokerage Fees.
  • FOB Burlington, ON
  • Everything is taken care of for you!
