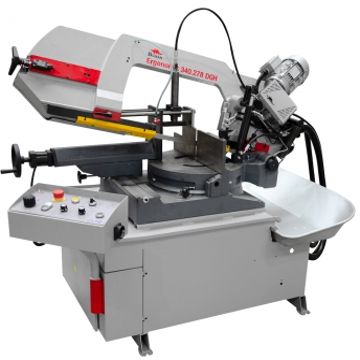

Universal band saw with a sturdy construction, robust cast iron arm and a 27 mm high saw band. Material clamping and arm displacement are hydraulically controlled. The material feeding is manually. Angle cuts of this type provides a range from -45 ° to +60 °. The arm is rotated manually. Angle cuts can be set directly from the cutting point. After the cut, the machine arm automatically stops in the upper adjustable position. The cast iron arm provides better vibration damping during cutting than the welded arm.The saw can be easily operated using the control buttons on the front moveable control panel. Cooling unit is built into the machine base. The machine can be extended with a wide range of accessories.
- • Rigid Cast Iron Saw Head.
- • Carbide precision band guide.
- • Safety Switches on Band-wheel Door.
- • Blade Tension and Breakage Switch.
- • Integrated Coolant System.
- • Mechanical Length Stop.
- • CSA Approved.
SPECIFICATIONS:
| Capacity Round Capacity Round 45° Capacity Round 60° Capacity Rect. Capacity Rect. 45° Capacity Rect. 60° Voltage 3 Phase Blade Drive Motor |
11" 10.4" 6.1" 13.4" x 3.94" 9.05" x 3.94" 5.7" x 3.94" 230/60/3 2 HP |
| Blade Size Blade speeds Blade guides Blade tension Band Wheels |
1" x 10'3" Variable speed 65 to 393 fpm Carbide preset Ductile Iron |
| Table Height Width Length Height Shipping Weight |
30.5" 62" 60" 83" 860 lbs |
NEW LOWER PRICE:
$13,495.00
THIS CANADIAN DOLLAR PRICE INCLUDES:
- No Charge for C.S.A. Approval (Required by Law in Canada).
- FOB Burlington, ON
- Everything is taken care of for you!
Watch The Ergonomic 340.278DG Video:
